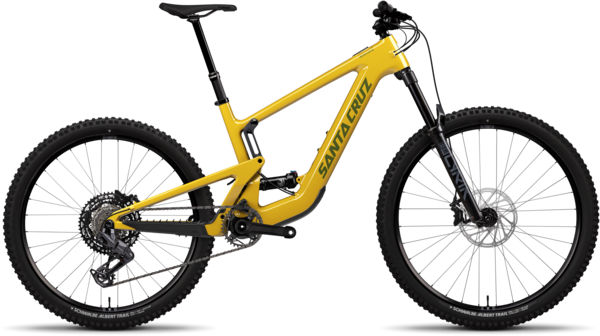

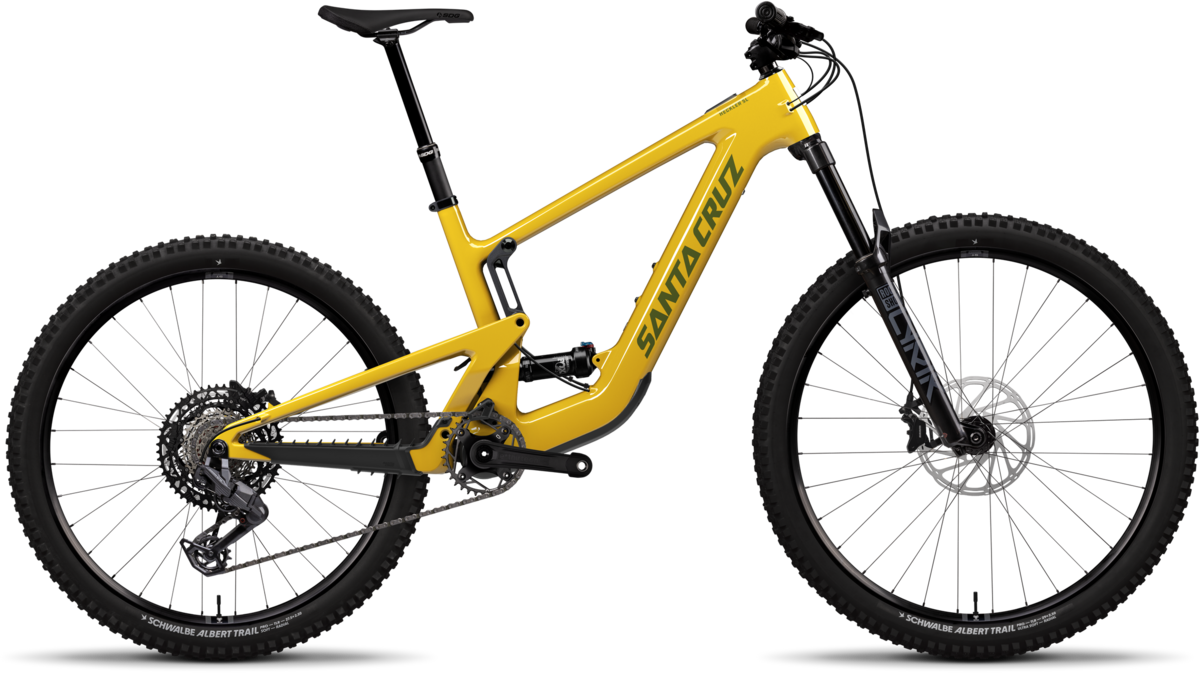

Santa Cruz Heckler SL 70

Santa Cruz Heckler SL 70
  • Color: Gloss Mustard Yellow
  • Color: Matte Dark Blue
$7,299.00
Color:
Size: Select size
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable
Sorry, this item is currently not available. If you are interested in this item we can try to Backorder it for you... text or call us for availability.

Details

A sneaky ebike that’s lightweight, powerful and has surprising range. All the on-trail traits of a Santa Cruz combined with the FAZUA RIDE 60 drive unit. 150mm of legendary VPP™ suspension, mixed wheels, and progressive geometry makes the Heckler SL a natural handling trail bike. Just with the added power of an ebike.

Sizes:
Frame SizeSmallMediumLargeX-LargeXX-Large
Geometry Position High/Low High/Low High/Low High/Low High/Low
Reach (mm) 435/432.4 460/457.4 480/477.5 500/497.4 525/522.5
Stack (mm) 614.9/616.8 624/625.8 633/634.9 651/653 664.5/666.5
Head Tube Angle 64.3/64 64.3/64 64.3/64 64.3/64 64.3/64
Head Tube Length (mm) 100 110 120 140 155
Rear Center (mm) 443/443.8 443/443.8 443/443.8 446/446.8 450/450.7
Front Center (mm) 766.1/765.9 795.4/795.3 819.7/819.6 848.4/848.3 879.9/879.8
BB Height (mm) 344/340.7 344/340.7 344/340.7 344/340.7 344/340.7
BB Drop - Front (mm) 28.5/31.8 28.5/31.8 28.5/31.8 28.5/31.8 28.5/31.8
BB Drop - Rear (mm) 9.9/13.3 9.9/13.3 9.9/13.3 9.9/13.3 9.9/13.3
Wheelbase (mm) 1209.1/1209.7 1238.4/1239.1 1262.7/1263.4 1294.4/1295.1 1329.9/1330.5
Top Tube Length (mm) 569.2/579.6 602.7/602.9 620.6/621.5 641.8/642.7 669.1/670
Seat Tube Length (mm) 380/380 405/405 430/430 460/460 500/500
Seat Tube Angle 76.8/76.6 77.1/76.9 77.5/77.2 77.7/77.5 77.8/77.5
Standover Height (mm) 720.1/716.2 733/728.8 733.4/729.3 731.7/731.6 741/738.6
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
Small 154cm-165cm 5'1"-5'5"
Medium 165cm-175cm 5'5"-5'9"
Large 172cm-185cm 5'8"-6'1"
X-Large 182cm-193cm 6'1"-6'4"
XX-Large 190cm-200cm 6'3"-6'7"

Specs

Fork RockShox Lyrik Base, 160mm
Rear Shock FOX Float Performance, 210x55
Rims WTB ST Tough 30
Hubs Front: SRAM MTH 716, 15x110, 6-Bolt, 32h
Rear: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Tires Front: Schwalbe Albert, 29x2.5, Trail Radial Ultra Soft
Rear: Schwalbe Albert, 27.5x2.5, Trail Radial Soft
Bottom Bracket Fazua DU w/ E-TOR spindle
Crankset E13 Helix eSpec, 165mm
Shifters SRAM 90 Eagle T-Type, Single Click, 12spd
Rear Derailleur SRAM 70 Eagle T-Type, 12spd
Cassette/Freewheel SRAM XS 1270 Eagle T-Type, 10-52t
Chain SRAM 70 Eagle T-Type, Flattop, 12spd
Brakes SRAM DB8
Rotors SRAM Centerline, 200mm
Handlebars Burgtec Alloy Bar -or- e13 TRS Base Bar
Tape/Grips Santa Cruz Bicycles House Grips
Stem OneUp Enduro Stem, 42mm -or- e13 TRS Base Stem, 40mm
Headset Cane Creek 10 IS Integrated Headset
Seatpost SDG Tellis Dropper, 31.6
Saddle SDG Bel-Air V3 Max
Pedals Sold Separately
Motor Fazua Ride 60
Battery Fazua Energy 430Wh Integrated Battery

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Mustard Yellow / Small / 29-inch front / 27.5-inch rear 192219520131 58-26318-451-2-855-132801-01
Gloss Mustard Yellow / Medium / 29-inch front / 27.5-inch rear 192219520193 58-26318-451-3-855-132801-01 210000056642
Gloss Mustard Yellow / Large / 29-inch front / 27.5-inch rear 192219520254 58-26318-451-4-855-132801-01
Gloss Mustard Yellow / X-Large / 29-inch front / 27.5-inch rear 192219520315 58-26318-451-5-855-132801-01
Gloss Mustard Yellow / XX-Large / 29-inch front / 27.5-inch rear 192219520377 58-26318-451-6-855-132801-01
Matte Dark Blue / Small / 29-inch front / 27.5-inch rear 192219520162 58-26318-451-2-856-132801-01
Matte Dark Blue / Medium / 29-inch front / 27.5-inch rear 192219520223 58-26318-451-3-856-132801-01
Matte Dark Blue / Large / 29-inch front / 27.5-inch rear 192219520285 58-26318-451-4-856-132801-01
Matte Dark Blue / X-Large / 29-inch front / 27.5-inch rear 192219520346 58-26318-451-5-856-132801-01
Matte Dark Blue / XX-Large / 29-inch front / 27.5-inch rear 192219520407 58-26318-451-6-856-132801-01

Reviews
