Details

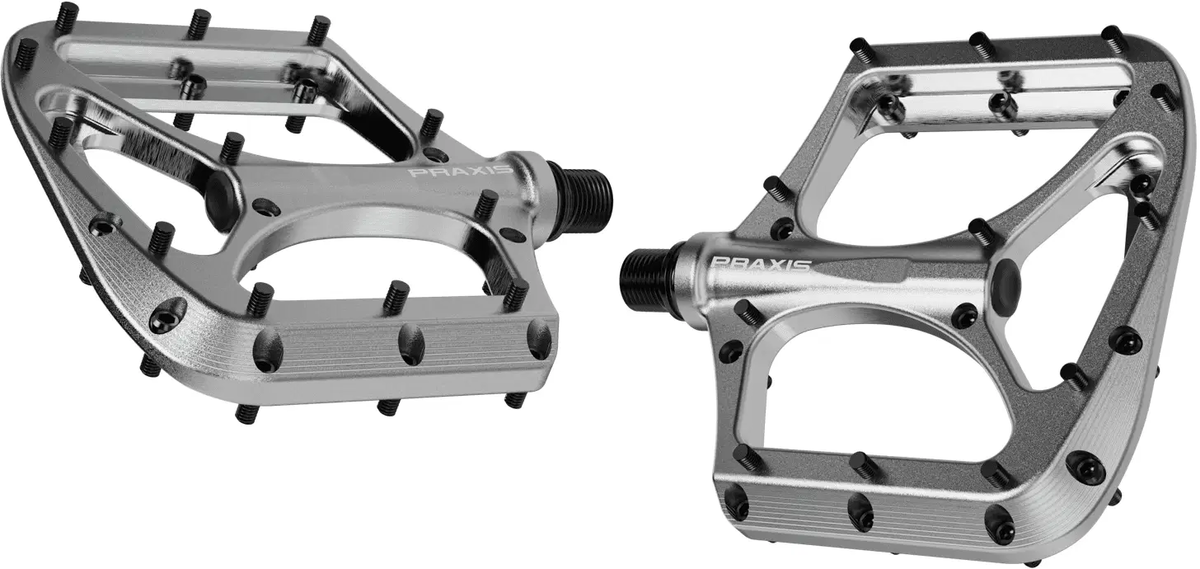

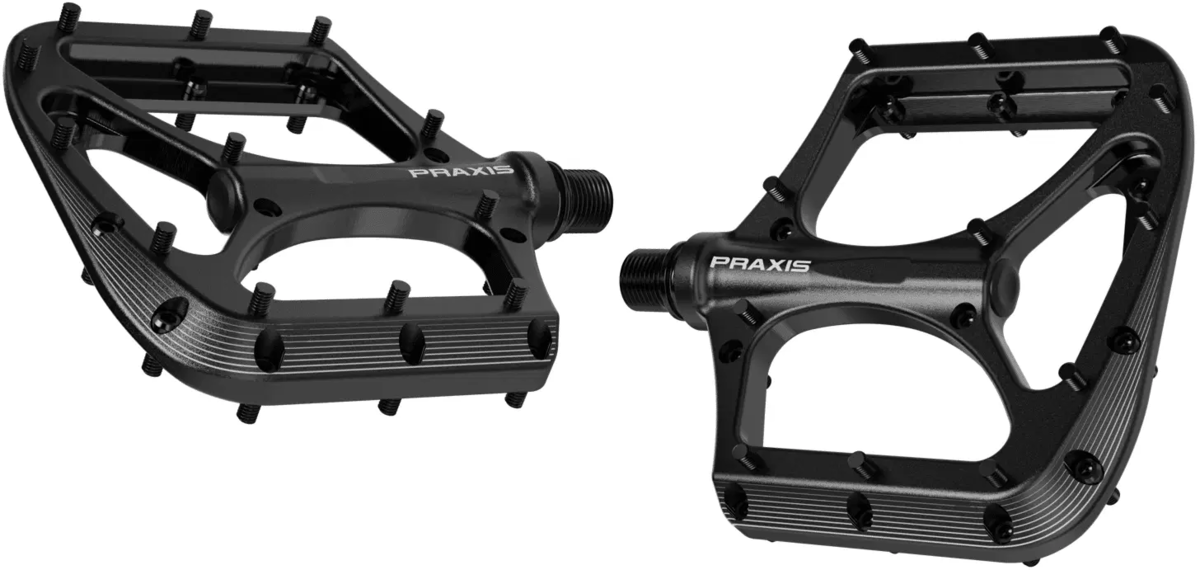

Our new performance alloy flat pedal with a serious pedigree. Inspired by the original Gamut Podium with its svelte shape and concave platform to grip your foot. Perfect for both Alloy and Carbon cranks.
BUY THIS IF: You want a performance alloy flat pedal with a serious pedigree. Inspired by the original Gamut Podium with its svelte shape and concave platform to grip your foot. Works with both Alloy and Carbon cranks.
BODY
- Forged and CNC | 6061-T6 Aluminum
- Low profile - 3mm Concave platform
- 12 stainless steel black pins per side with pre-applied Loctite
FOOTPRINT 14mm - Height
- 115mm - Length
- 112mm - Width
AXLE
- Forged Heat-treated 4140 chromoly spindle
- 8mm Allen for easy install/removal
PINS
- 48 stainless steel rear-loading pins installed/included
- M4 threaded so other M4 grub pins also compatible
- 3mm Allen for install/removal
- Allows you to customize your pin layout with a total of 12 pins per side
WEIGHT
- 399g pair with Steel pins
BEARINGS/BUSHINGS
- 3 High-Grade Sealed Cartridge Enduro Bearings per pedal
-1 Igus Bushing per pedal
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Black | 850054960443 | PD-1000B | 210000051631 |
Silver | 850054960436 | PD-1000A | 210000051632 |
Orange | 850054960474 | PD-1000E | 210000051633 |
Aqua | 850054960467 | PD-1000D | 210000051634 |
