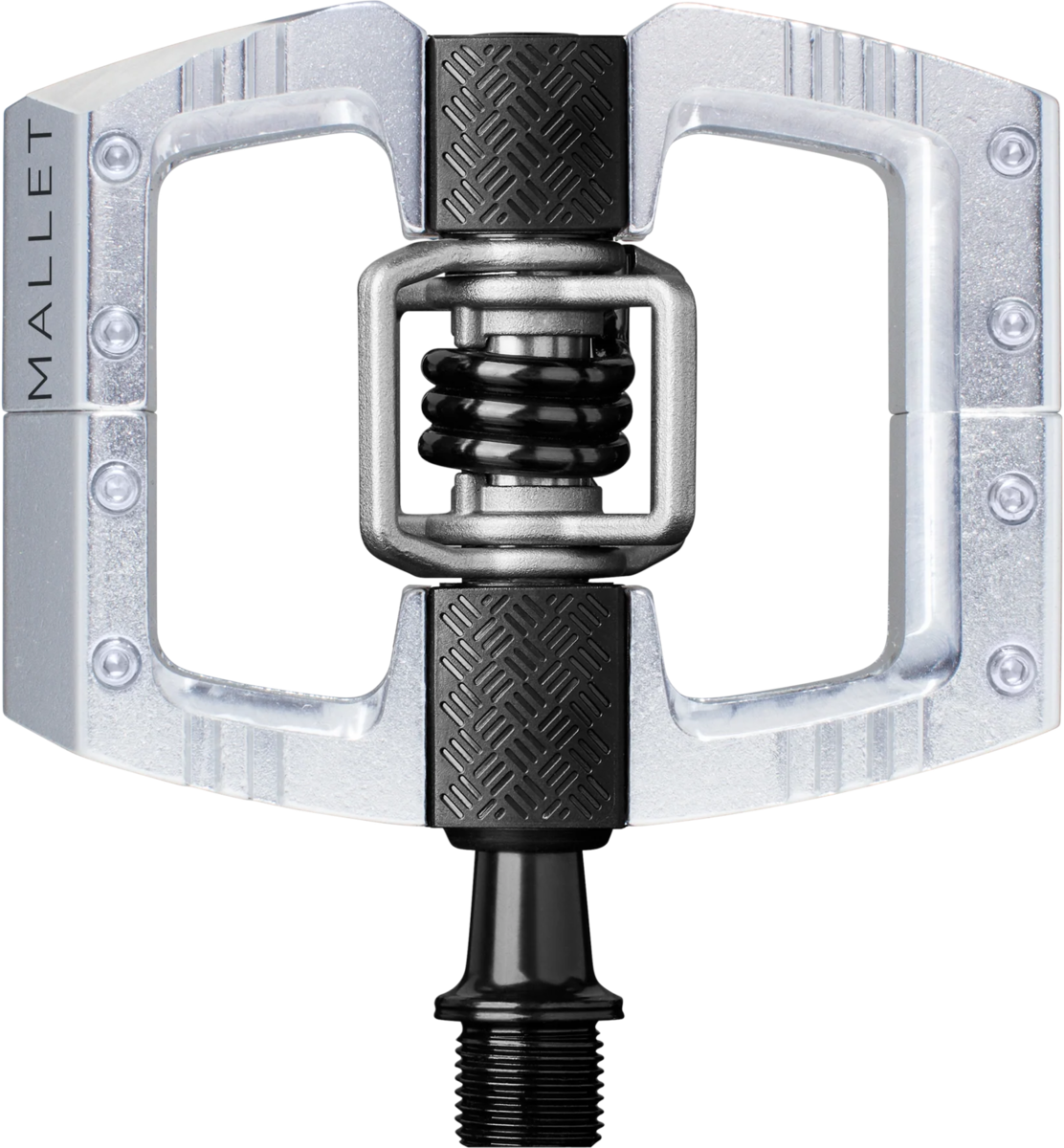

Crank Brothers Mallet DH - Silver Edition

Crank Brothers Mallet DH, the choice of DH world champions.

- Concave platform for secure foothold
- 8 adjustable pins per side for grip
- Traction pad technology customizable interface
- Ribbed body for better traction when unclipped
- Chamfered edges to reduce rock-strikes
- 57mm q-factor for stability at speed
- 4-sided entry / superior mud shedding
- Customizable float & release angle
- Premium bearing & double seal system

Specs
Body Material: 6061-T6 Aluminum
Body Dims (L x W): 100mm x 78mm
Wing Material: 17-4PH Stainless
Spindle Length: 57mm
Traction Pins: 8 adjustable per side
Pin Length: 8mm
Inner Bearing Type: Igus LL-glide bearing
Outer Bearing Type: Enduro MAX cartridge bearing
Endcap: Hex alloy
Spindle Material: Forged SCM 435 Chromoly Steel
Spring Material: 300 series stainless steel
Max Rider Weight: No restriction
Weight: 479g per pair

Included Cleat Type: 15° / 20° Standard Release, 6° Float

Cleat Notice
Third-party cleats are not approved for use with Crankbrothers pedal systems. Using non-Crankbrothers cleats can reduce pedal lifespan and voids the pedal warranty.
